Roxxy brushless motor
75,90 €
incl. 19% VAT plus Shipping

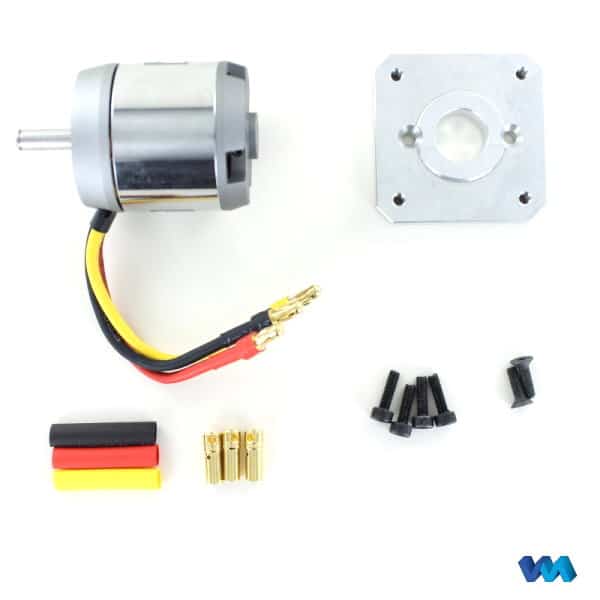

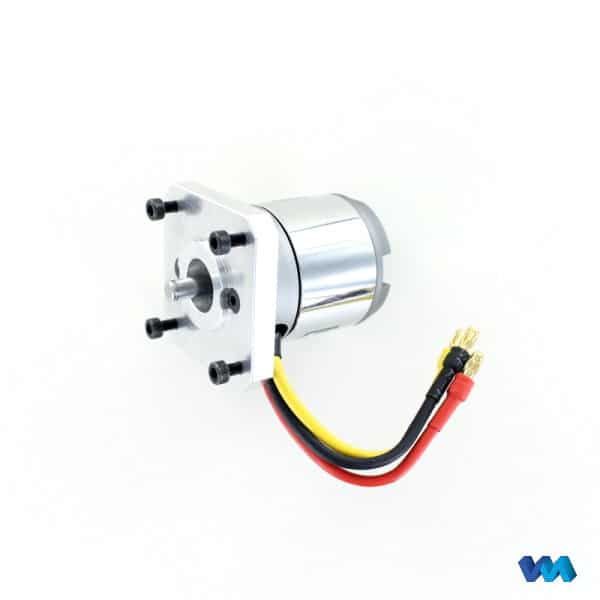

Roxxy brushless motor, for 1/8 scale, compatible with the 2-speed manual gearbox (item no. 220350), with an adapter plate for easy mounting on the gearbox, 1,100 rpm per volt, motor shaft 5 mm, motor power 680 watts, operating voltage 12 volts, milled aluminium adapter plate, contents: 1 brushless motor, 1x adapter plate, mounting hardware, instructions
Warning! Not suitable for children under 14 years of age.
item code: 220355
In stock
Roxxy brushless motor, for 1/8 scale, compatible with the 2-speed manual gearbox (item no. 220350), with an adapter plate for easy mounting on the gearbox, 1,100 rpm per volt, motor shaft 5 mm, motor power 680 watts, operating voltage 12 volts, milled aluminium adapter plate, contents: 1 brushless motor, 1x adapter plate, mounting hardware, instructions
Warning! Not suitable for children under 14 years of age.
