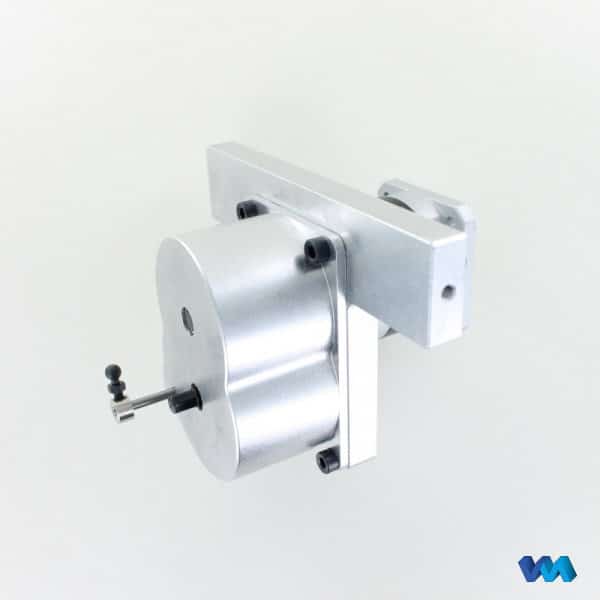

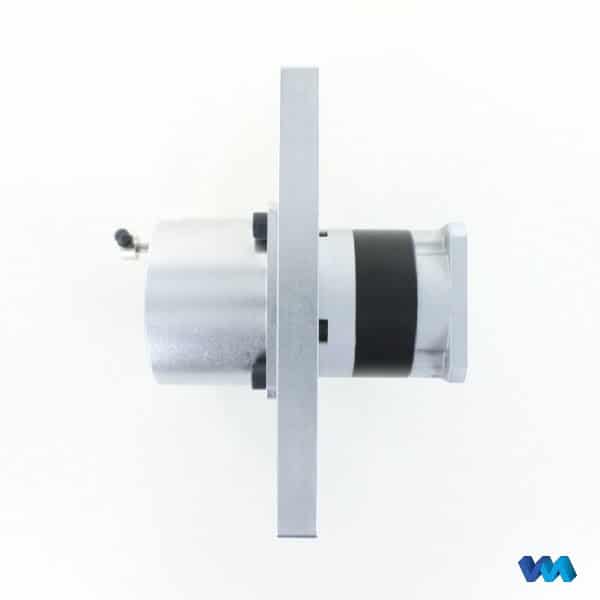

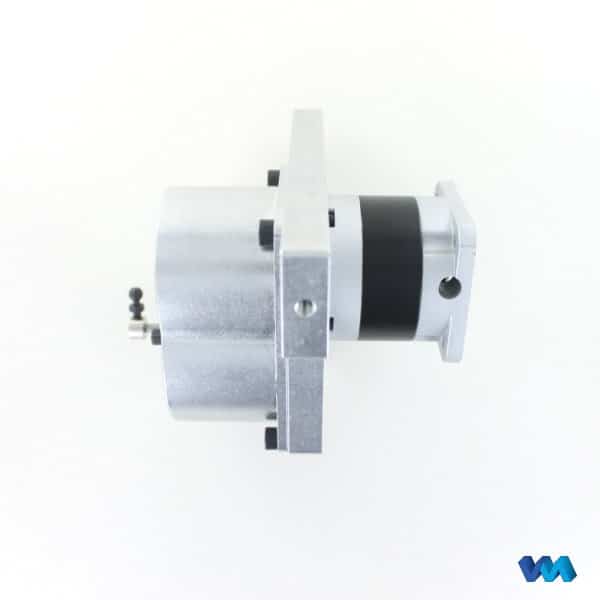

2-speed manual gearbox
219,00 €
incl. 19% VAT plus Shipping
2-speed manual gearbox, for 1/8 scale, very powerful, designed for brushless motor item no. 220355, suitable only for planetary shafts, total reduction ratio 1st gear 20:1, 2nd gear 10:1, flanged planetary stage with a reduction ratio of 10:1, for 5mm motor shafts, shifting via servo is possible whilst driving, housing and carrier milled from aluminium, output shaft SW5, 3-ball bearing, shafts and gears hardened, input speed max. 12,000 rpm, shift rod and mounting hardware included, Contents: 1 gearbox with planetary stage, mounting parts
Warning! Not suitable for children under 14 years of age.
item code: 220350
In stock
2-speed manual gearbox, for 1/8 scale, very powerful, designed for brushless motor item no. 220355, suitable only for planetary shafts, total reduction ratio 1st gear 20:1, 2nd gear 10:1, flanged planetary stage with a reduction ratio of 10:1, for 5mm motor shafts, shifting via servo is possible whilst driving, housing and carrier milled from aluminium, output shaft SW5, 3-ball bearing, shafts and gears hardened, input speed max. 12,000 rpm, shift rod and mounting hardware included, Contents: 1 gearbox with planetary stage, mounting parts
Warning! Not suitable for children under 14 years of age.
| Dimensions | 15 × 10 × 10 cm |
|---|
You must be logged in to post a review.
You may also like…

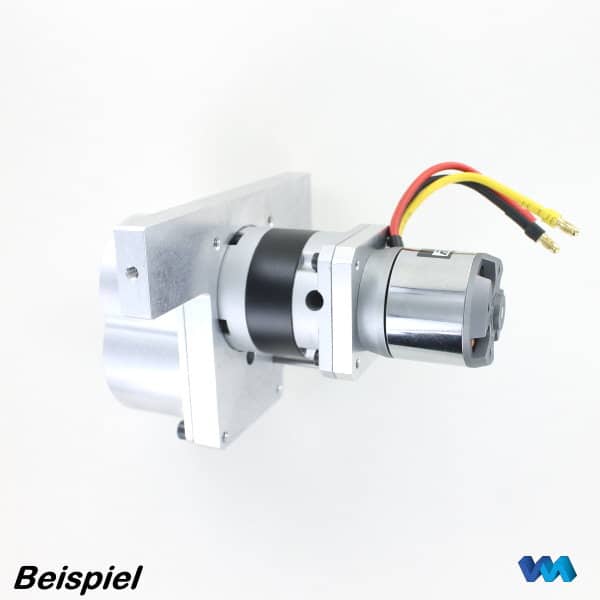

Roxxy brushless motor
incl. 19% VAT
plus Shipping
Roxxy brushless motor, for 1/8 scale, compatible with the 2-speed manual gearbox (item no. 220350), with an adapter plate for easy mounting on the gearbox, 1,100 rpm per volt, motor shaft 5 mm, motor power 680 watts, operating voltage 12 volts, milled aluminium adapter plate, contents: 1 brushless motor, 1x adapter plate, mounting hardware, instructions
Warning! Not suitable for children under 14 years of age.
item code: 220355
Related products
2-axle boxed trailer
incl. 19% VAT
plus Shipping
2-axle boxed trailer, scale 1/14, suitable for Volvo FH16 (56360), metal kit
Product details:
Torsion-resistant steel frame in sandwich construction
Frame made of 3 and 1 mm sheet steel, laser-cut and CNC-bent
Steel sheet bogie in sandwich construction
Bearing bogie (adjustable) with sliding pads for easy manoeuvring
Drawbar (one-piece) made of fibre-reinforced plastic with chequer plate application
The drawbar is held in place by two tension springs for easier coupling
Coupling height 75 mm
Box body made of CNC-milled aluminium parts
Plastic side panels screwed on in sandwich look
Loading door locking with magnets
Aluminium door hinges (270° opening angle)
Ball-bearing chrome rims with wide tyres
Solid steel underride guard (left/right)
Detailed semi-trailer axles with dummy air springs, optionally with + 8 mm lift (kit contains both versions with/without lift)
Mudguards with splash guards
Bumper mud flap set
CNC-milled aluminium rear bumper
Decor set, detailed assembly instructions
Dimensions: LxWxH: 545 x 195 x 290 mm
Total weight: 4,800 g
Warning! Not suitable for children under 14 years of age.
item code: 907731
Half-round mudguard set
incl. 19% VAT
plus Shipping
Half-round mudguard set, scale 1/16, made of plastic, for trailers with single tires, dimensions: length 88mm, width 31mm, height 43mm, mounting hole spacing 55.5mm, steel retaining rods with M3 thread, for frame widths of 84mm, contents: 2 mudguards, 4 steel retaining rods, 1 instruction manual
Attention! Not suitable for children under 14 years of age.
item code: 220963
Gear motor for low bed low loader
incl. 19% VAT
plus Shipping
Gear motor for low-bed low-loader, rated voltage 7.2 Volt, idling speed 136 rpm, continuous current 1.35A, peak torque 688mNm, reduction ratio 110:1, weight 88g, dimensions: total length 90mm, diameter 22mm, output shaft 6 Ø x 15mm, 3 mounting holes M3, content : 1 gear motor
Attention! Not suitable for children under 14 years.
item code : 907703
Servo bracket set steering axle low loader
incl. 19% VAT
plus Shipping
Servo holder set, suitable for the Carson lowbed low loader Art. no. 907700, steel holders, servo mount 40x20mm (standard servo), steering rod with ball heads for connecting the first steering axle, contents: 1 servo holder, 1 steering rod with ball heads M3, assembly material, instructions
Caution! Not suitable for children under 14 years of age.
item code: 907701
Universal light module LBS10
incl. 19% VAT
plus Shipping
Universal light module LBS10, fully assembled, 4 outputs with max. 350mA each, 10 different effects to choose from ( e.g. flashing light, strobe light, permanent light and running light ), BEC with 4.8 Volt or external power supply from 6-14 Volt, functions selectable via the remote control ( 3-way toggle switch or 3-way button with zero position in the middle 1-0-1 ), size (lxwxh) : approx.35 x 22 x 15mm, weight approx. 10 grams, contents: 1 electronic module, 1 servo cable, 1 jumper, 1 power cable, installation instructions
Caution! Not suitable for children under 14 years.
item code : 907685
1/14 Alloy 2-Speed Manual Transmission Compact
incl. 19% VAT
plus Shipping
1/14 Alloy 2-Speed Manual Transmission Compact
This compact 2-speed transmission is designed for use in TAMIYA 2- and 3-axle chassis in conjunction with the 2-speed transfer case. It offers you the possibility to convert or upgrade your model to all-wheel drive. It impresses with its simple installation, as existing bores/threads are used here. The small design allows the installation of the driven front axle (500907267 - front axle installation kit 500907280 is required.) .
Compact 2-speed manual transmission
2-speed: gear ratio 1:11.3 (1st gear) and 1:5.666 (2nd gear)
5-fold ball bearing
CNC machined aluminum housing
Hardened steel gears
Incl. aluminum motor mount for 540 motors (suitable for CARSON and TAMIYA standard and truck motors)
Incl. motor pinion (3,17mm) and mounting material
Easy mounting by using existing holes (2 screws) on the ladder frame
5 mm gearbox/output shaft
The gears are shifted by a micro-servo
Dimension gearbox (o. motor) LxWxH: 47 x 62 x 35 mm
Weight (without motor) approx. 165 g.
Switching servo and 540 motor are not included.
Caution! Not suitable for children under the age of 14.
item code: 907265
3-speed gearbox
incl. 19% VAT
plus Shipping
3-speed gearbox, gearbox housing made of aluminum, hardened gears made of steel, 6 ball bearings, suitable for the scale 1/16 to 1/10, reductions: 1st gear 22,65: 1, 2nd gear 11,32: 1 , 3nd gear 5.66: 1. Dim. Length without motor 65mm, width 46,6mm, height 39,4mm, shaft exit 5mm diameter
The gearbox is mounted, the motor and the matching flange are attached from the outside via two terminals on the gearbox, is switched by a servo, the max. Input speed is 6,500 rpm. The attachment to the frame via the existing brackets on the gear housing. The frame width should be between 60-63mm
Contents: 1 manual transmission, fixing screws, ball heads
Item code: 251100
